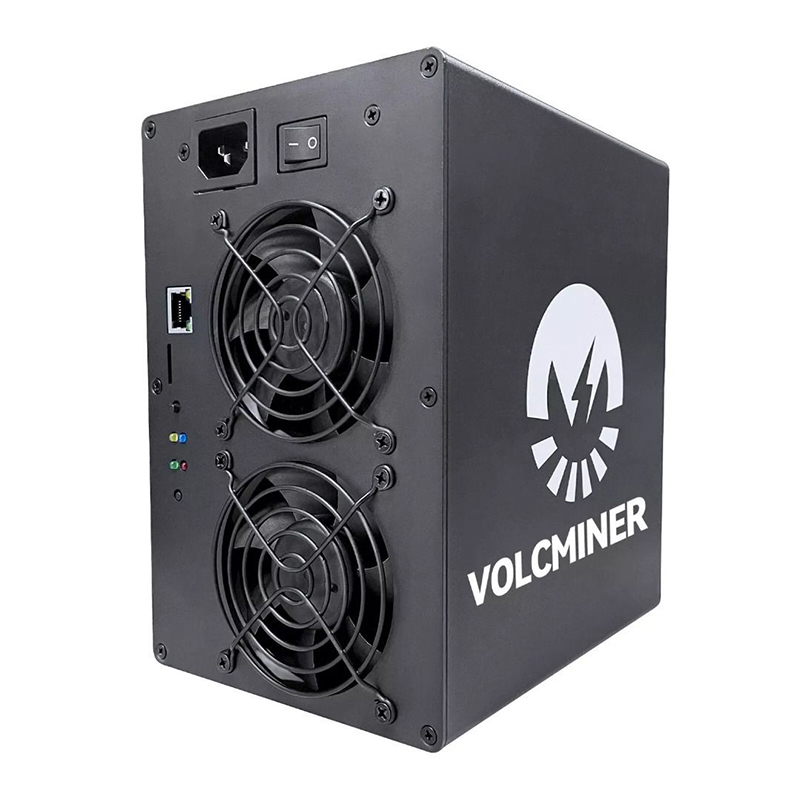

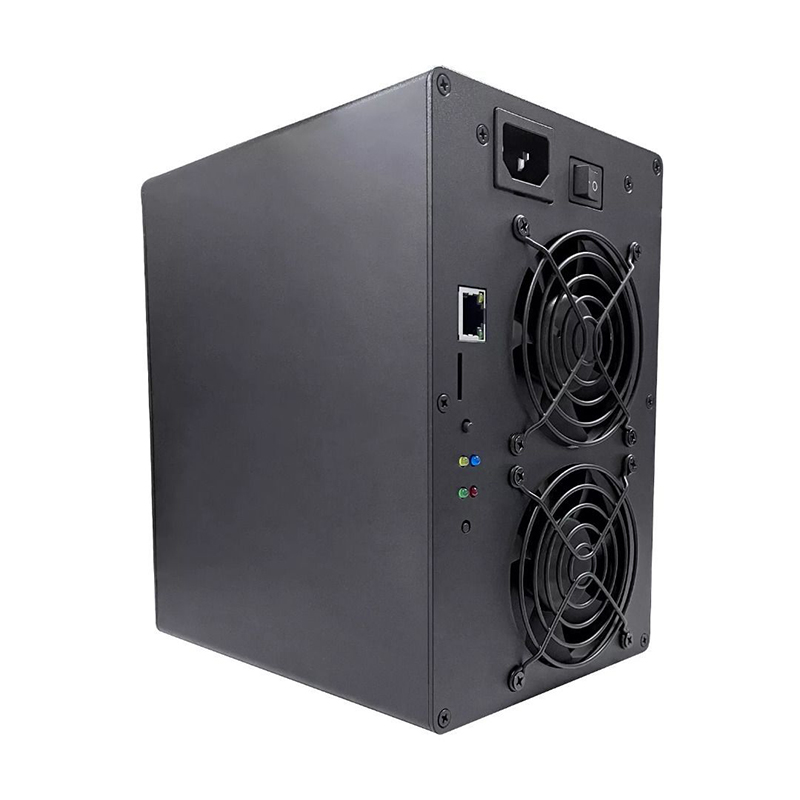

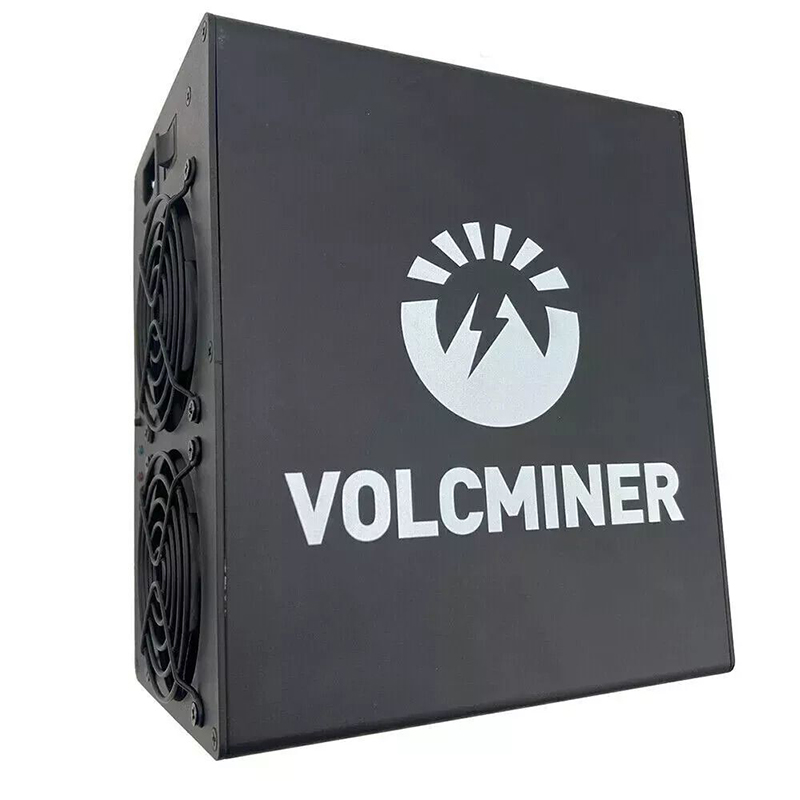

Volcminer D1 Mini pre
Model
D1
Algorithm | Cryptocurrency
Scrypt | LTC+DOGE+BEL
Typical Hashrate, GH/s
2.2
Power on wall @25°C, Watt
500±5%
Power efficiency on wall@25°C, J/GH
229
Detailed Characteristics
Single-Phase AC Power supply
Input voltage, Volt
200~300V
Input Frequency Range, Hz
47~63
Input max current, Amp
20
Hardware Configuration
Network connection mode
RJ45 Ethernet 10/100M
Server size (Length*Width*Height, w/o package), mm
175*202*135
Server size (Length*Width*Height, with package), mm
315*342*265
Net weight, kg
4.45
Gross weight, kg
6.15
Noise@25℃, dBA @25℃
75
Environment Requirement
Operation temperature, °C
-20~45
Storage temperature, °C
-40~70
Operation humidity(non-condensing), RH
10~90%
Operation altitude, m
≤2000
NOTE
1.Tip: Incorrect input voltage may lead to miner damage.
2.Two AC input wires, each carrying 16 amps.
3.It is recommended to operate below 2000 meters altitude.
