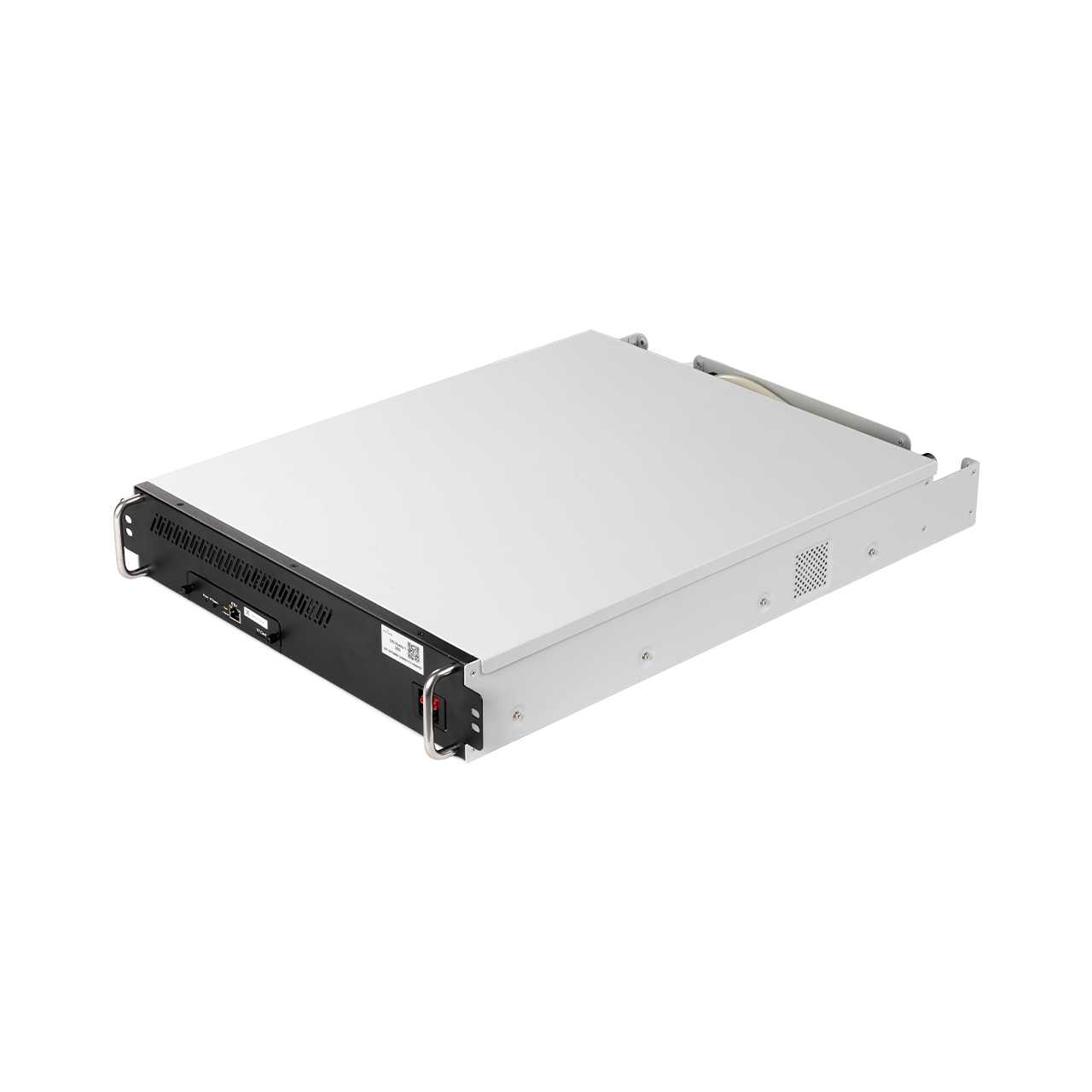

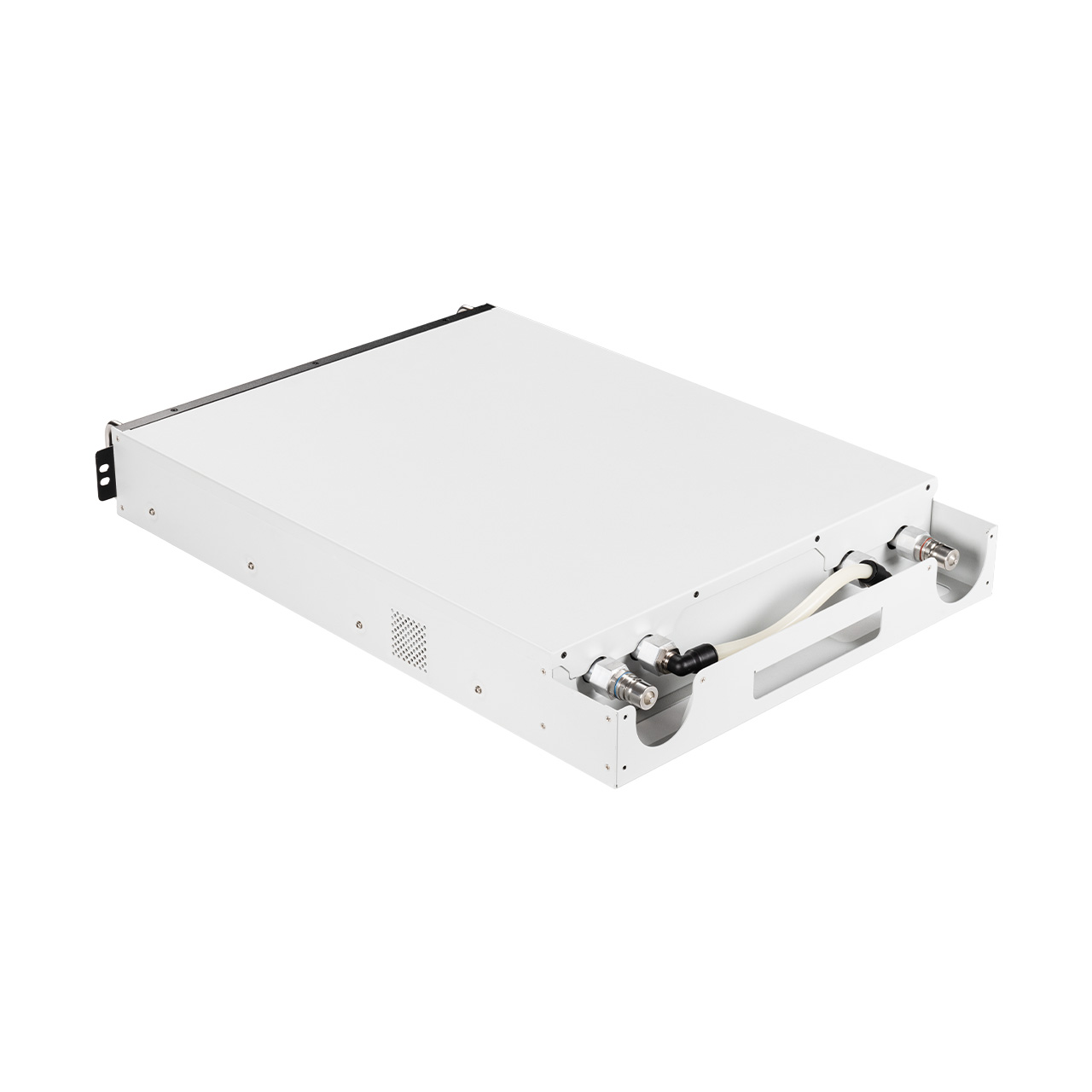

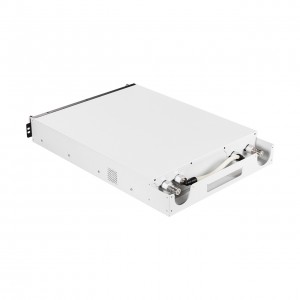

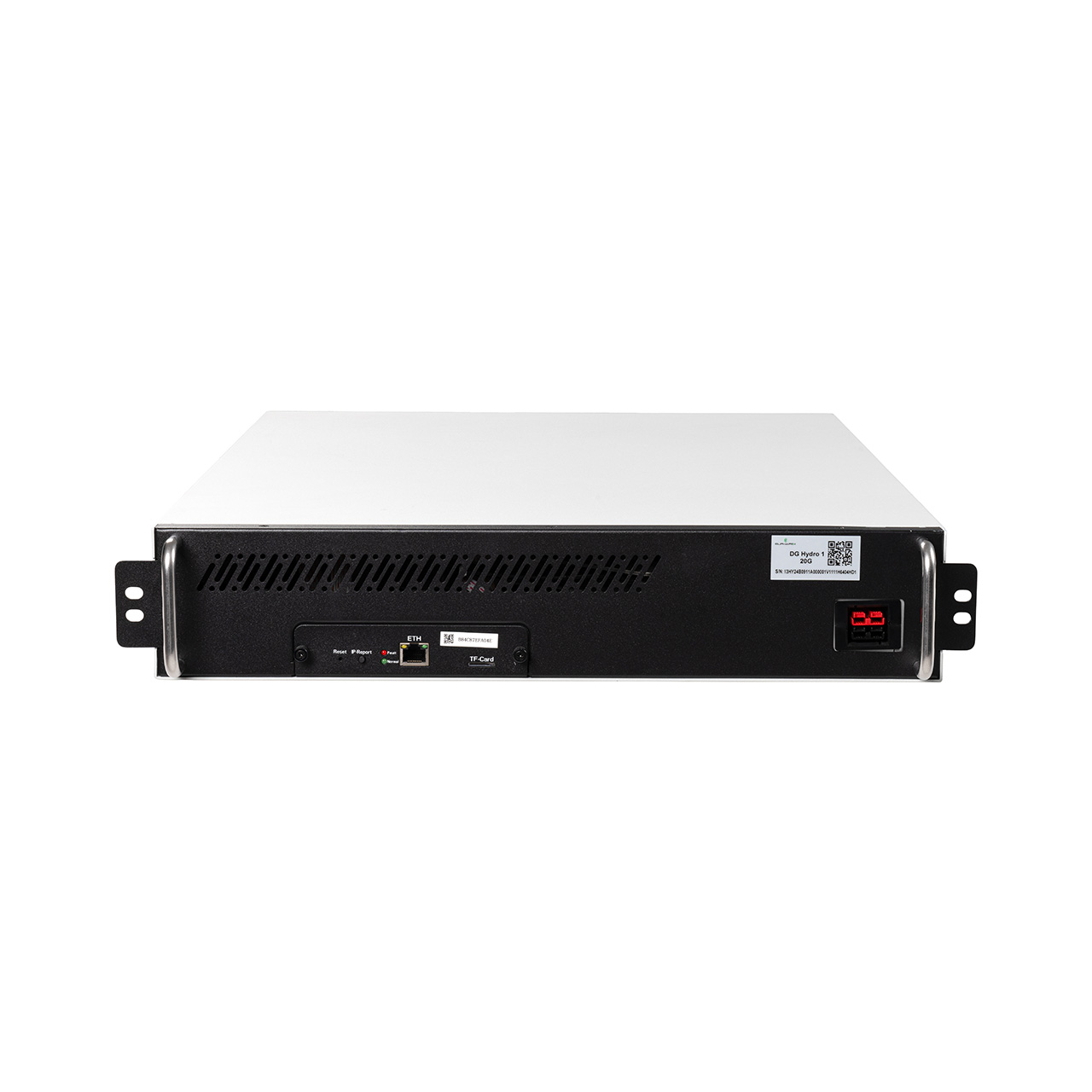

Elphapex DG Hydro 1
Product Glance
Model
DG Hydro 1
Algorithm
Scrypt
Hashrate,GH/s
20G
Power on wall @25°C.Watt
6200 ±10%
Power efficiency on wall @25°C,J/GH
310±10%
Detailed Characteristics
Power supply AC input voltage, Volt(1-1)
AC380-480V, 3w+ ground, input 10kW
Power supply AC input Frequency Range, Hz
50~60
Power supply AC input current, Amp(1-2)
≥16A
Hardware Configuration
Networking connection mode
RJ45 Ethernet 10/100M
Miner size (Length’width’Height,w/o package),mm
656*447*86 with handle
Miner size (Length’width’Height, with package),mm
760*590*245
Gross weight, kg
31.000
Net weight, kg
25.000
Coolant demand per machine
About 1L
Water flow
≥10L/min
Water pressure
≤4bar
Inlet water temperature
35-55
NOTE:
- 1.Using an incorrect input voltage may result in miner damage.
- 2.It is recommended to operate at altitudes below 2000 meters.
- 3.Please note that this unit is specifically designed for hydro container racks. For home mining purposes, supplemental exterior cooling equipment will be necessary.
