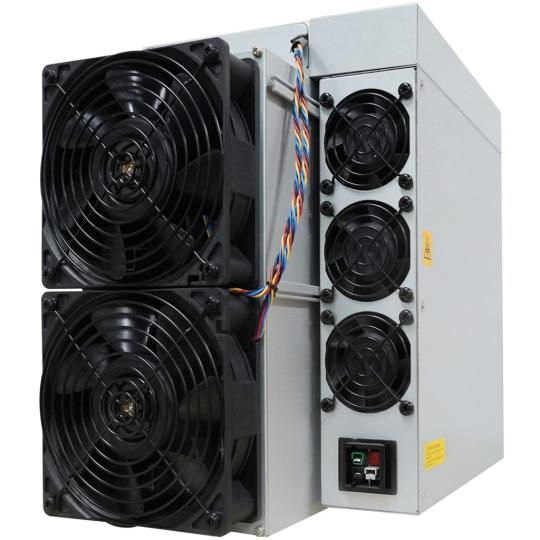

Antminer AL1 PRO
| Product Glance | Value | ||
| Crypto algorithm/coins | Blake3 | ALPH | ||
| Sub | Pro | ||
|
Typical Hashrate,TH/s(1-1)
|
16.6 | ||
| Power on wall @25°C(1-2),W(1-1) | 3,730 | ||
| Power efficiency on wall @25°C(1-2),J/TH(1-1) | 225 | ||
| Detailed Characteristics | Value | |
| Power Supply | ||
| Input voltage range,Volt(2-1) | 220~277 | |
| Input Frequency range,Hz | 50~60 | |
| Input max current,A | 20 | |
| Hardware Configuration | ||
| Network connection mode | RJ45 Ethernet 10/100M | |
| Server Size (Length*Width*Height, w/o package),mm | 430*195*290 | |
| Server Size (Length*Width*Height, with package),mm | 570*316*430 | |
| Net weight,kg | 16.5 | |
| Gross weight,kg | 18.2 | |
| Noise@25℃,dBA(2-2) | 75 | |
| Environment Requirements | ||
| Operation temperature,°C | -20~40 | |
| Storage temperature,°C | -40~70 | |
| Operation humidity(non-condensing),RH | 10~90% | |
| Operation altitude,m(2-3) | ≤2,000 | |
Notes:
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values. The actual Hashrate value fluctuates by ±3%, and the Power efficiency on wall fluctuate by ±5%.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) Max condition: Fan is under max RPM(rotation per minute).
(2-3) When the miner is used at an altitude from 900m to 2,000m, the highest operating temperature decreases by 1°C for every increase of 300m.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) Max condition: Fan is under max RPM(rotation per minute).
(2-3) When the miner is used at an altitude from 900m to 2,000m, the highest operating temperature decreases by 1°C for every increase of 300m.
